ZM110 + BSL Base

The ZM110 + BLS Base Bench Series is the perfect solution for general weighing in warehouse…

See All Products

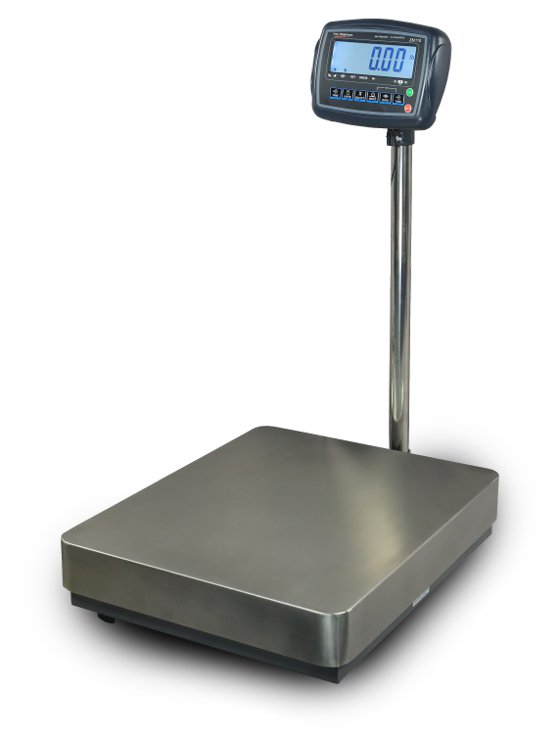

ZM110 scale image

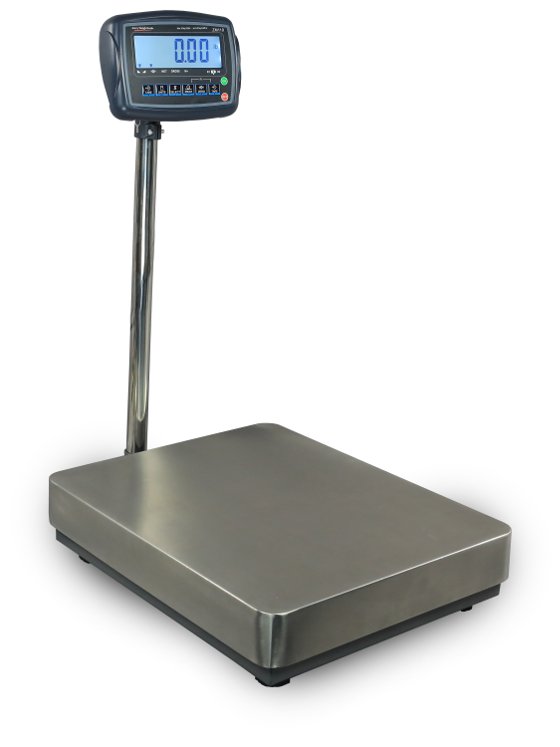

ZM110 scale image

Overview

The ZM110 + BSL Base Bench Series is calibrated with the ZM110 LCD Indicator and is 6,000d unapproved, but EC & OIML approved up to 3,000d; 3,000d EC approved E2 stamped. This rugged and reliable system is available in three capacities and three platform sizes. Simply connect the indicator to the base and it is ready to weigh or count your product.

The removable top pan is made from food grade 304 stainless steel, which helps protect against corrosion and is easily sanitized.

This scale offers weighing capacities of 45 kg, 113 kg and 272 kg with units of measurement in lb and kg. The general weighing function is easily changed to sample mode for fast and easy counting while the check weighing and check counting function are ideal for guaranteeing product or box quantities are correct and for repetitive packing applications. The audio buzzer quickly lets you know if you are under or over the acceptable weight range.

The large LCD display has a white backlit display making it easy to read in low lit environments. The scale operates on an AC power adapter (included) along with a built-in rechargeable lead acid battery providing over 107 hours of battery life between charges.

The ZM110 + BLS Base Bench Series is the perfect solution for general weighing in warehouse and shipping/receiving applications.

Typical Applications: Shipping/Receiving Areas, Light Industrial, Warehouse, Counting, Check Weighing, Animal Weighing (HOLD)

Specifications

Base Dimensions (L x W) 3000d EC approved E2 Stamped:
400 mm x 400 mm base - 60 kg x 0.02 kg
400 mm x 500 mm base - 150 kg x 0.05 kg
400 mm x 500 mm base - 300 kg x 0.1 kg
500 mm x 600 mm base - 300 kg x 0.1 kg
Product Code
ZM110 BSL40x40 (60kg / 132lb) – 810036380607
ZM110 BSL40x40 (60kg E2 Stamped) – AWT05-055669
ZM110 BSL40x50 (150kg / 330lb) – 810036380614
ZM110 BSL40x50 (150kg E2 Stamped) – AWT05-055670
ZM110 BSL40x50 (300kg / 660lb) – 810036380621
ZM110 BSL40x50 (300kg E2 Stamped) – AWT05-055671
ZM110 BSL50x60 (300kg / 660lb) – 810036380638
ZM110 BSL50x60 (300kg E2 Stamped) – AWT05-055672
Base Dimensions (L x W) 6000d unapproved but EC & OIML approved up to 3000d:
400 mm x 400 mm base - 60 kg x 0.01 kg | 132 lb x 0.02 lb
400 mm x 500 mm base - 150 kg x 0.02 kg | 330 lb x 0.05 lb
400 mm x 500 mm base - 300 kg x 0.05 kg | 660 lb x 0.1 lb
500 mm x 600 mm base - 300 kg x 0.05 kg | 660 lb x 0.1 lb
Display
large, easy-to-read 50 mm x 165 mm LCD backlit display with 40 mm high digits and built-in battery that allows this product to be used in low lit areas or in areas where power outlets are hard to find

Product Differentiators

  • Designed to weigh in lb, kg, or pieces
  • Functions include genera/animal weighing, check weighing, and check counting with audio under, accept and over buzzer
  • 150% overload protection, powder coated tubular base frames constructed of mild steel and four corner stops
  • The base is fully covered with a removable, hard-wearing, food grade 304 stainless steel top pan
  • Fitted with a robust, R60 C3 approved, aluminum IP66 load cell
  • Provides over 107 hours of battery life between charges

Product Resources

These resources help you get the most out of your Brecknell product. Can't find what you're looking for? Contact Us

User Manual
Specification Sheet
