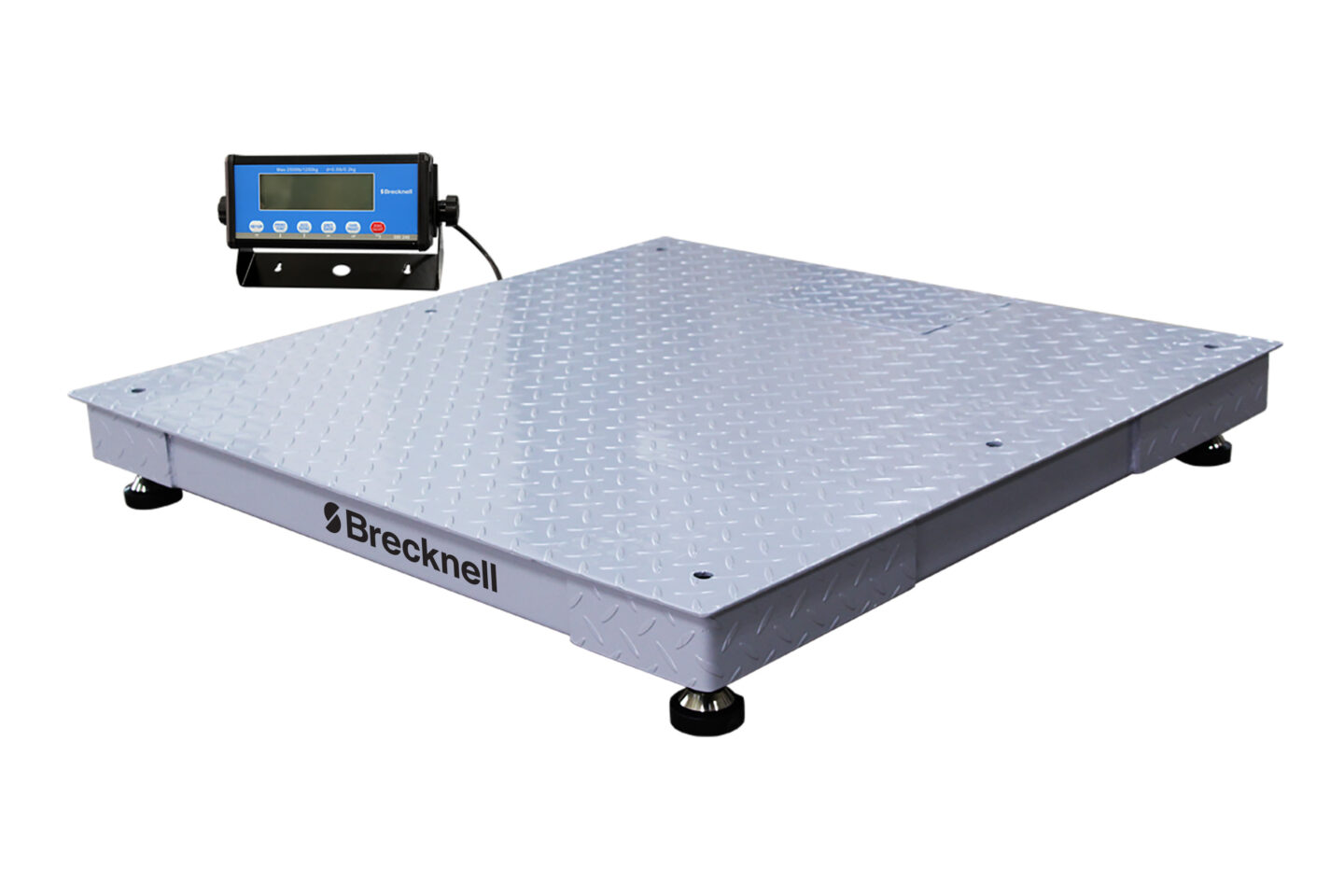

DCSB Floor Scale System

High quality floor scale system for weighing loads of up to 5000 kg.

See All Products

Overview

This robust DCSB Floor Scale and Indicator System is used for a wide range of general weighing applications where palletized goods are constantly being weighed or moved around by pallet jacks or forklifts.

Ideal for most warehouse and shipping areas or where goods need to be consistently weighed.

Typical Applications: Livestock, Shipping, Warehouse

Specifications

Scale Dimensions
DCSB3636 36" x 36" / 915 mm x 915 mm
DCSB4848 48" x 48" / 1220 mm x 1220 mm
DCSB5959 59" x 59" / 1500 mm x 1500 mm
Product Code
DCSB3636 (1250kg / 2500lb) – 810036380041
DCSB4848 (2500kg / 5000lb) – 810036380058
DCSB4848 (5000kg / 10000lb) – 810036380065
DCSB5959 (2500kg / 5000lb) – 810036380072
DCSB5959 (5000kg / 10000lb) – 810036380089
Display
Comes precalibrated with SBI 240 Indicator featured with LCD display, backlight, and rugged aluminum housing
Capacity
1250 kg x 0.2 kg / 2500 lb x 0.5 lb
2500 kg x 0.5 kg / 5000 lb x 1 lb
5000 kg x 1 kg / 10,000 lb x 2 lb

Product Differentiators

  • The DCSB platform is fabricated from high quality carbon steel with a 6 mm / ¼" hard wearing checker plate top deck and heavy duty welded channel under structure
  • IP67 load cells with 150% overload protection design
  • Communication: One USB (VCP) and one RS-232 bi-directional full duplex port
