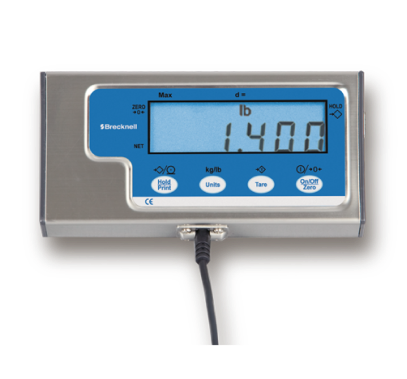

SBI 140

The SBI 140 indicator is a very low cost, simple to operate weight indicator designed for use…

Request a Quote

Overview

The SBI 140 indicator is a very low cost, simple to operate weight indicator designed for use in a wide range of applications (non-trade approved).

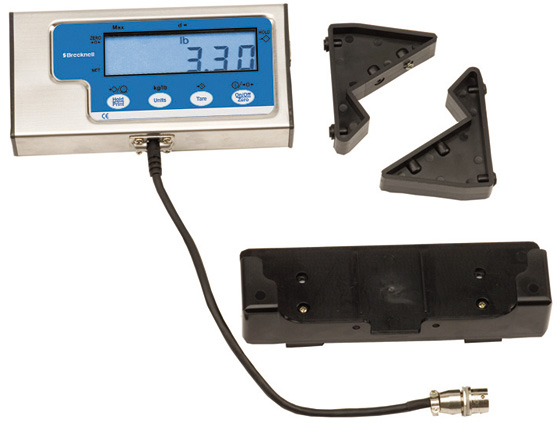

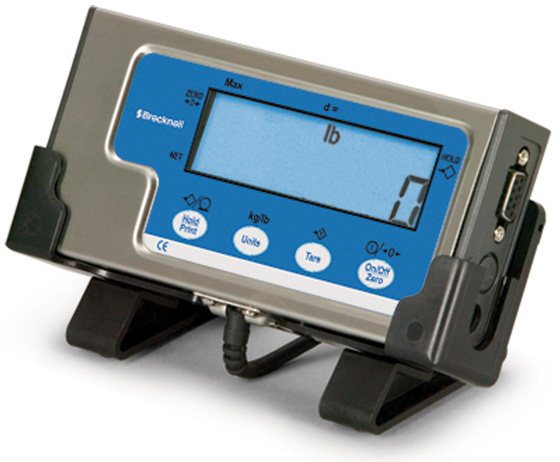

This compact indicator is housed in a stainless steel/ABS case and is supplied complete with a mounting bracket, making it ideal for wall or bench mounting.

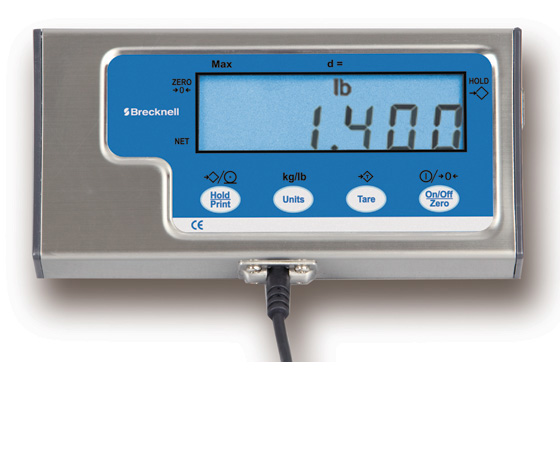

The easy to read five digit 17 mm / 0.625″ high LCD ensures accurate readings.

Full Duplex RS-232 output for printer etc. supports the NCI protocol to interface to most common shipping software, including UPS™ Worldship Online and FedEx®.

Auto zero tracking and Hold mode are standard. To extend battery life, the SBI 140 has an auto-off feature with the indicator switching itself off after 2 minutes of inactivity.

Typical Applications: Industrial, Livestock, Shipping, Warehouse

Specifications

Indicator Dimensions
6.5″ x 1.2″ x 3.2″
165 mm x 30 mm x 81 mm
Product Code
SBI-140 – 52751-0556
Display
Five 0.625" digits LCD display
Compliance
CE, FCC compliant, Prop 65, RoHS 3, ETL power adapter, WEEE directive

Product Differentiators

  • Resolution displayed up to 1:10,000; internal 1:520,000
  • Standard NCI interfaces to most common shipping software including, UPS Worldship Online and FedEx
  • Stainless steel/ABS case, complete with wall bracket and desk mount
