DCSB Floor Scale System with SBI 521 LED Indicator

IP65 rated mild steel general purpose weighing platform with alloy tool steel potted load cells.…

Request a Quote

Overview

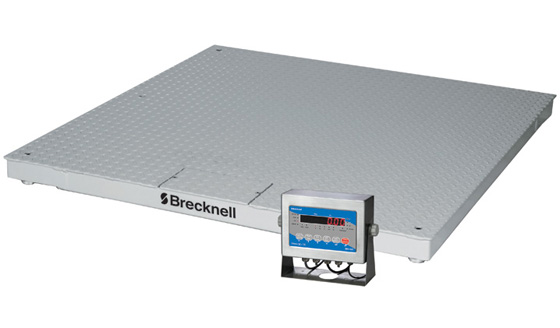

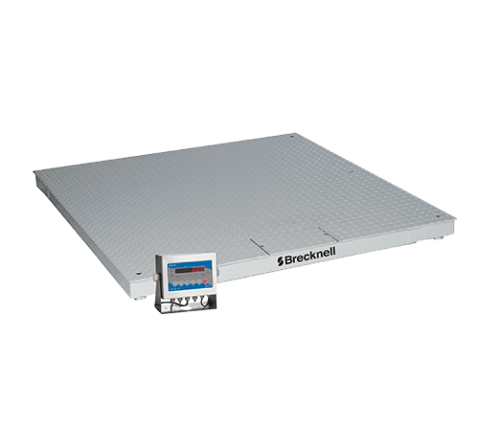

This robust DCSB Floor Scale, calibrated with SBI 521 Indicator (NTEP approved), is the ideal weighing solution for a wide variety of industries where palletized goods are constantly being weighed or moved around by pallet jacks or forklifts.

The platform deck, available in a wide range of capacities and dimensions, has 1/4″ / 6 mm thick hard-wearing checker plate with powder coat surface finish and waterproof IP67 load cells.

Simple to operate, the SBI 521 indicator with LED display offers all the functions and features needed to improve efficiency and increase productivity in most warehouse and manufacturing environments.

Typical Applications: Livestock, Shipping/Receiving Areas, Industrial, Warehouse

Approvals:

Specifications

Scale Dimensions
48″ x 48″ / 1219 mm x 1219 mm
60” x 60″ / 1524 mm x 1524 mm
48″ x 48″ / 1219 mm x 1219 mm
60” x 60″ / 1524 mm x 1524 mm
Product Code
DCSB3636 (1250kg / 2500lb) – 810036380041
DCSB4848 (2500kg / 5000lb) – 810036380058
DCSB4848 (5000kg / 10000lb) – 810036380065
DCSB5959 (2500kg / 5000lb) – 810036380072
DCSB5959 (5000kg / 10000lb) – 810036380089
Platter Dimensions
0.25" / 6 mm thick top plate with heavy duty welded channel support
Capacity
5000 lb x 1 lb / 2500 kg x 0.5 kg
10,000 lb x 2 lb / 5000 kg x 1 kg
Display
0.7" / 17 mm LED display
Warranty
Three year standard warranty

Product Differentiators

  • Accuracy: NTEP at 5000d, Class III
  • Power: 6 volt 4 AH rechargeable internal lead acid battery with 110/220 AC internal transformer
  • Indicator: Comes fully calibrated with the robust stainless steel SBI 521 legal-for-trade indicator
  • Operator Keys: Hold/Setup, Print/Func, N/G/Total, Unit/Data, Tare/Preset, Zero/On/Off
