DCSB Series (Deck only)

IP65 rated mild steel general purpose floor scale with alloy tool steel potted load cells. Legal for Trade, NTEP certified at 5,000 divisions.

See All Products

Overview

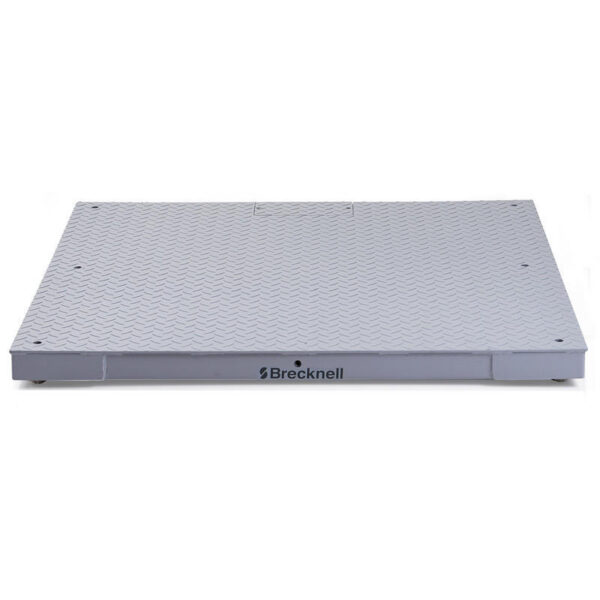

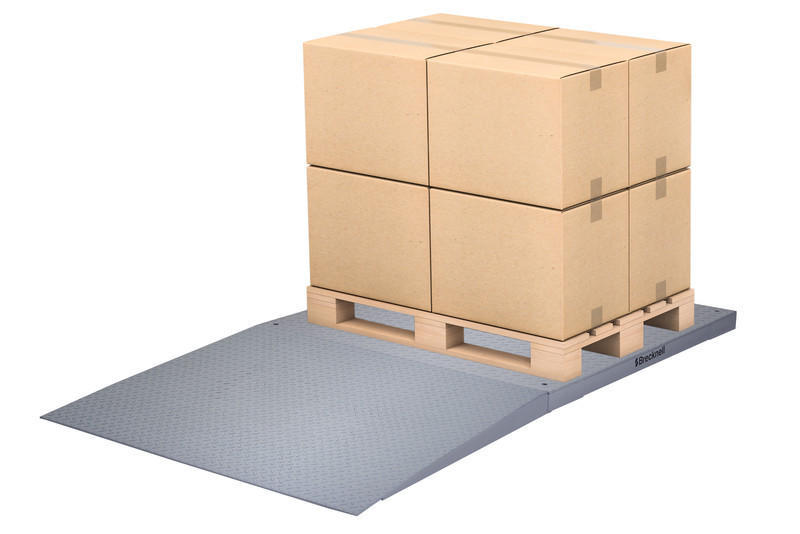

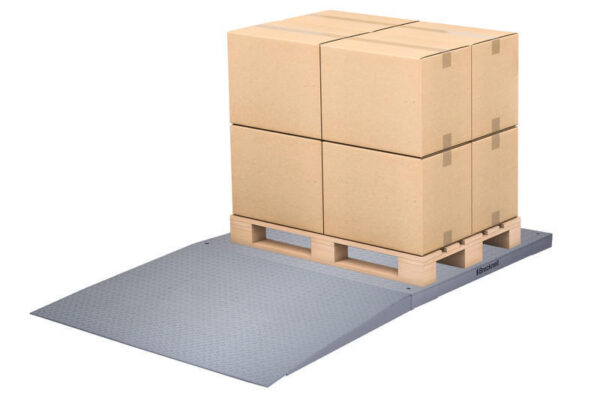

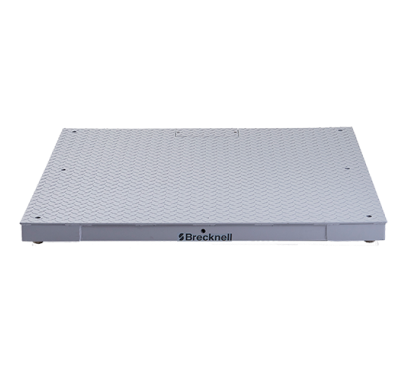

This robust DCSB Floor Scale (NTEP approved) is the ideal weighing solution for a wide variety of industries where palletized goods are constantly being weighed or moved around by pallet jacks or forklifts.

The platform deck, available in a wide range of capacities and dimensions, has 1/4″ / 6 mm thick hard-wearing checker plate with powder coat surface finish and waterproof IP67 load cells.

Typical Applications: Livestock, Shipping/Receiving Areas, Industrial, Warehouse

Approvals:

Specifications

Scale Dimensions
91 cm / 3.1 inches high; 44 mm / 1.75" adjustable leveling feet
Product Code
DCSB3636 (1250kg / 2500lb) – 810036380010
DCSB4848 (2500kg / 5000lb) – 56977-0019
DCSB4848 (5000kg / 10000lb) – 56977-0209
DCSB5959 (2500kg / 5000lb) – 810036380027
DCSB5959 (5000kg / 10000lb) – 810036380034
Capacity
2500 x 0.5 lb / 1250 x 0.2 kg
5000 x 1 lb / 2500 x 0.5 kg
10,000 x 2 lb / 5000 x 1 kg
Warranty
Three year standard warranty

Product Differentiators

  • Accuracy: NTEP at 5000d, Class III, 3000d OIML
  • Load Cells: Four NTEP/ OIML C3 approved Alloy Steel IP68 load cells

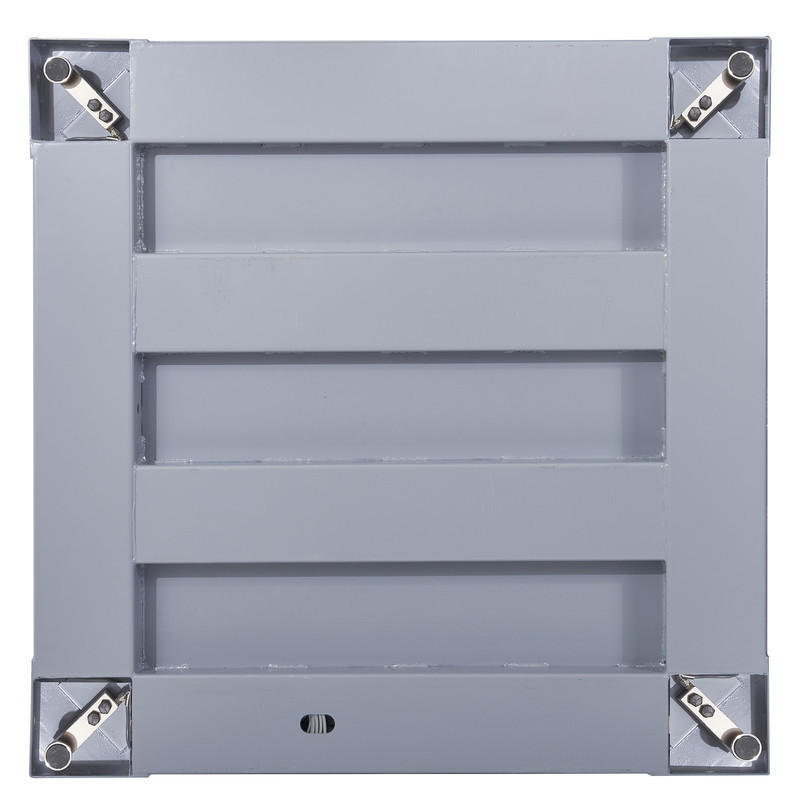

  • Construction: Up to 0.25" / 6 mm thick top plate with heavy duty welded channel support

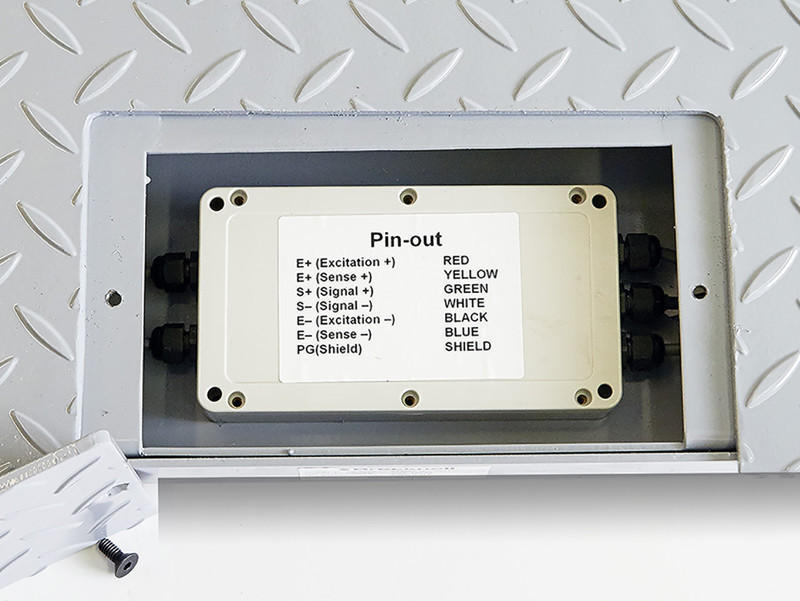

  • Junction Box: Top access

Product Resources

These resources help you get the most out of your Brecknell product. Can't find what you're looking for? Contact Us

Brochure
Floor Scale Kit Brochure
