DS1000-LCD

Portable Drum Weigher Scale featuring a powder coated rugged steel platform with a smooth top…

See All Products

Overview

The DS1000-LCD Drum Weigher Scale is ideal for any busy shipping area where goods are constantly being moved around by pallet jacks or for monitoring drum weights.

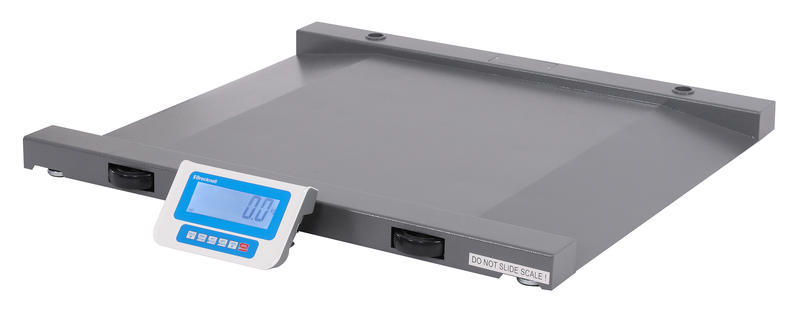

This portable, low profile floor scale features a powder coated rugged steel deck with a gradual 9% entry and exit ramp making it very easy to roll drums on and off the platform.

Simple to-operate, the indicator offers all the weighing functions needed for a wide range of applications as well as the display-hold function that retains results on the screen.

AC and battery powered means this scale can easily be installed in remote locations where power sockets are not available.

Typical Applications: Shipping/Receiving Areas, Industrial, Warehouse

Specifications

Scale Dimensions
31” x 41.3” / 800 x 1050 mm weighing surface
Capacity
500 kg x 0.2 kg / 1000 lb x 0.5 lb
Display
Multifunction indicator with easy-to-read LCD display, desk or pole mountable. 3m cable
Power
Supplied with a UK/EU/US AC power adaptor as standard, can also operate off 6 AA batteries (not included)

Product Differentiators

  • Accuracy: Within 0.1%
  • Power: AC adapter (included) or six AA batteries (not included)

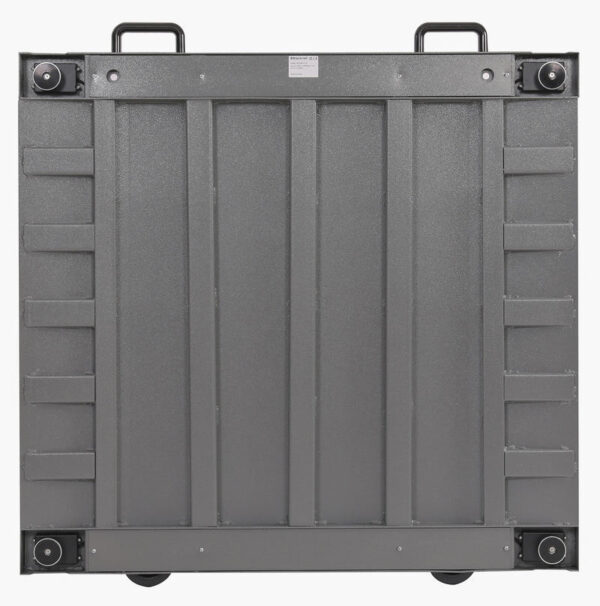

  • Construction: Powder coated rugged smooth steel deck structure and built-in ramps, fitted with two handles and wheels for relocating the scale. Robust ABS plastic indicator with bench or pole brackets for mounting
  • Operator Keys: On/Off/Zero, Tare, Unit, Print, Hold, Accumulate/Total
