PS-USB

PS-USB scales are particularly suited to shipping and warehouse applications and general purpose…

See All Products

Overview

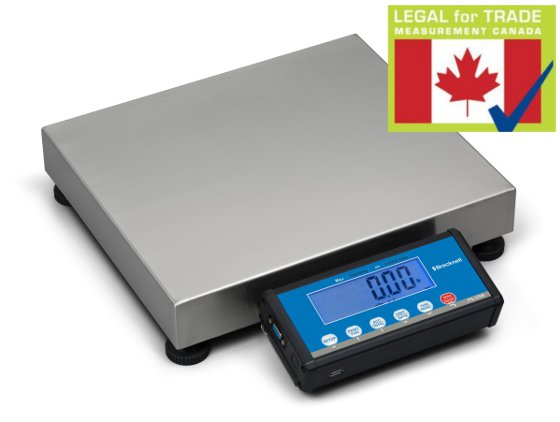

The PS-USB Series is a strong, robust, and accurate range of scales particularly suited to a wide variety of weighing application (Trade Approved). The aluminum cast base comes with adjustable feet and leveling bubble for precise weighing.

The easy-to-operate PS-USB indicator features a large LCD display and RS-232/USB ports that can transmit and receive using a demand type protocol (NCI). The triple power modes (battery, AC adapter and USB) enable portability or permanent installation.

The PS-USB scales offers all the functions and features needed to improve efficiency and increase productivity in most warehouse and shipping/receiving areas.

Typical Applications: General Purpose Weighing, Mail Room, Manifest Systems, Shipping/Receiving

Approvals:

Specifications

Scale Dimensions
16" x 14" x 3.15" / 411 mm x 355 mm x 80 mm
Product Code
PS-USB (15kg / 30lb) – 816965006540
PS-USB (30kg / 70lb) – 816965006533
PS-USB (60kg / 150lb) – 816965006526
Platform Dimensions
12" x 14" / 355 mm x 305 mm
Capacity
30 lb x 0.01 lb / 15 kg x 0.005 kg
70 lb x 0.02 lb / 30 kg x 0.01 kg
150 lb x 0.05 lb / 60 kg x 0.02 kg
Display
6½ digits 25 mm / 1" high, seven segments LCD display with blue backlight

Product Differentiators

  • RS-232 and USB Interface
  • Heavy duty cast aluminum base with stainless steel platter
  • Weighs in kg, lb, lb:oz* (*non-NTEP)
  • Operates on 6VDC 500mA adapter with center positive or four AA batteries
  • NSF listed, NTEP approved, Measurement Canada approved

Applicable Industries

Office, Mail and Shipping
