MS1000-LCD

This electronic chair scale was designed for either walking on or being wheeled on to be weighed.…

See All Products

Overview

MS1000-LCD Wheelchair Scale is ideal for any busy medical centers where the patient’s weight needs to be regularly taken and monitored.

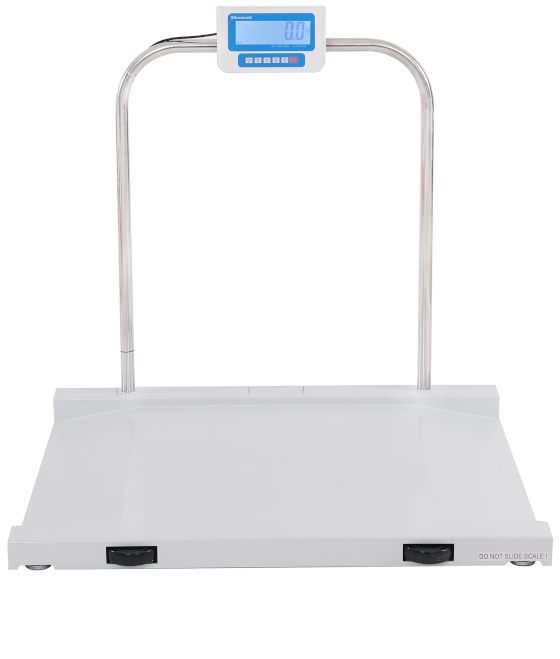

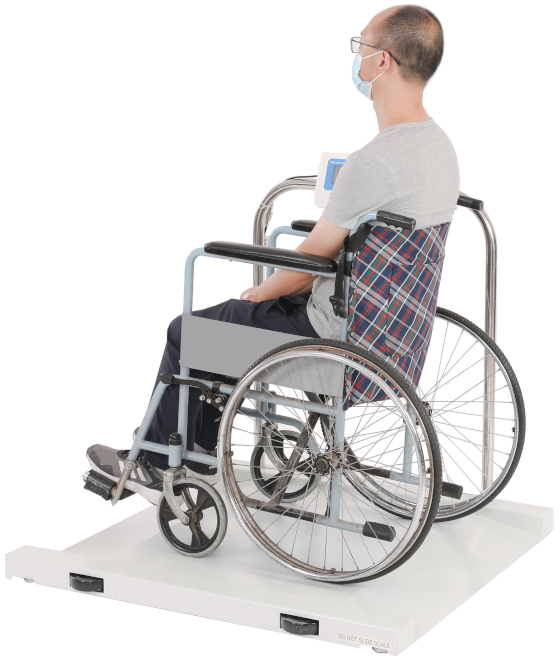

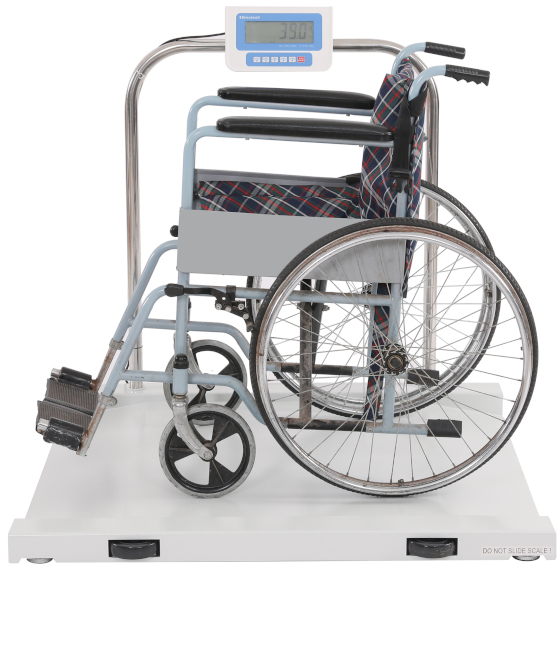

This low profile, robust, easy-to-clean patient & wheelchair platform has been specially designed to remain low to the ground with a gradual 9% entry and exit ramp. Provides a safe and easy way to push patients in wheelchairs on and off the scale.

Also, fitted with a fixed stainless steel handrail to help support any unbalanced patient. The weight indicator is easily viewable by both patient and consultant.

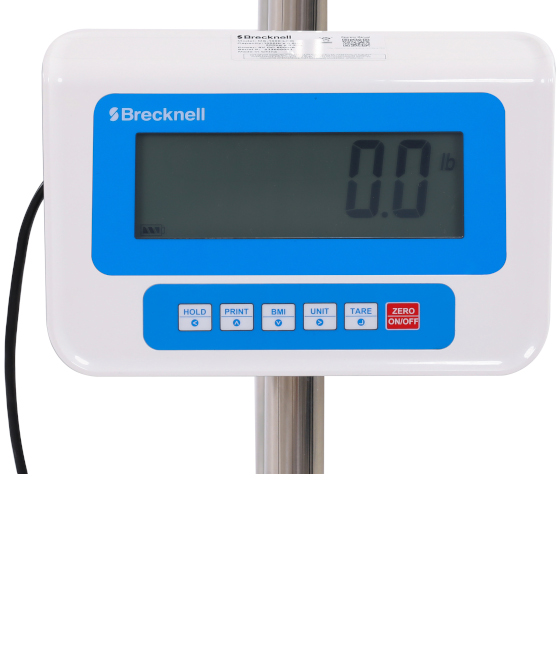

This weight indicator comes with a large, easy-to-read LCD backlit display. Ideal for viewing in all lighting conditions.

The MS1000-LCD is the perfect solution for assisted living facilities, clinics, nursing homes and physician exam rooms.

Typical Applications: Assisted Living, Clinics, Nursing Homes, Physician Exam Rooms

Product Resources

These resources help you get the most out of your Brecknell product. Can't find what you're looking for? Contact Us

Brochure
User Manual (en/fr)

Specifications

Display
Six large, easy-to-read 1.5″ / 38 mm high digits, large seven segment LCD with white backlight
Product Code
MS1000-LCD (500kg / 1000lb) – 810036380263
Indicator Dimensions
9.5″ x 4.9″ x 2.5″ / 241 mm x 125 mm x 64 mm
Capacity
1000 lb x 0.5 lb / 500 kg x 0.2 kg

Product Differentiators

  • No installation costs or parts that require maintenance. Just place the scale on a hard surface and level by adjusting the foot pads. Connect the power and you're ready to go
  • Provides consistent accuracy within 0.1% and comes equipped with a simple to operate indicator for fast LED digital readout
  • Powder coated rugged steel with smooth top plate surface and two handles and wheels to easily relocate. Adjustable foot pads to work effectively on uneven floors. Built-in
