PS500 Series

Overview

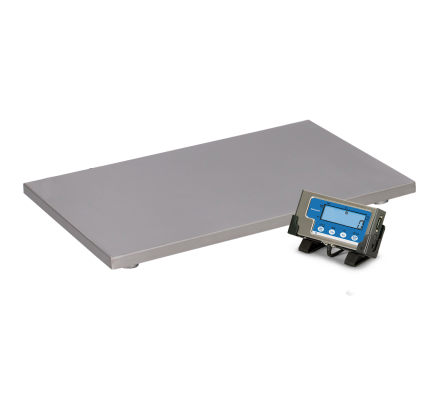

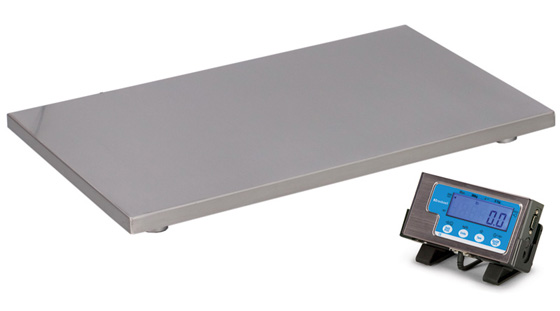

The PS500 Light Weight Floor Scales are particularly suited to shipping and warehouse applications and general purpose weighing. These are very affordable scales with high accuracy.

The dual power modes (battery and AC adapter) enable portability or permanent installation.

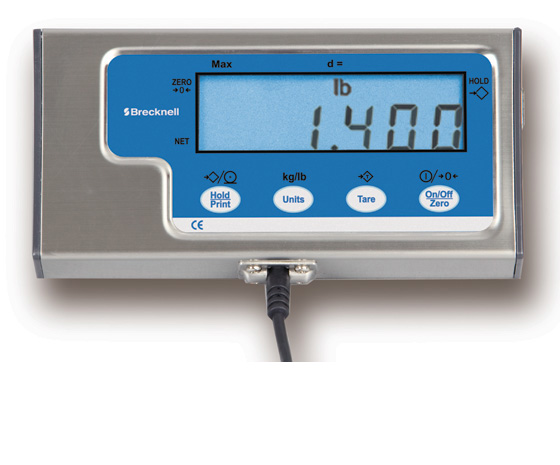

A large, simple to read display can be wall or stand mounted for easy visibility and the large keyboard switches work with gloved hands (wall and desk bracket included). The indicator features a RS-232 port that can transmit and receive using a demand type protocol.

Scale comes standard with NCI protocol and interfaces to most common shipping software, including UPS™ Worldship Online.

A durable low profile platform allows for easy weighing. It is a low cost yet versatile and portable scale.

Typical Applications: Livestock, Shipping/Receiving Areas, Industrial, Warehouse

Specifications

Platform Dimensions

22″ x 22″ x 2″ / 559 mm x 559 mm x 51 mm
36″ x 22″ x 2″ / 906 mm x 559 mm x 51 mm
42″ x 22″ x 2″ /1067 mm x 559 mm x 51 mm

Product Code

PS500-22 (250kg / 500lb) – 816965001903
PS500-36 (250kg / 500lb) – 816965001897
PS500-42 (250kg / 500lb) – 816965001453

Indicator Dimensions

6.5″ x 1.2″ x 3.2″ / 165 mm x 30 mm x 81 mm

Capacity

500 lb x 0.2 lb
500 lb x 5 oz
250 kg x 0.1 kg

Display

Five digit 0.65″ / 17 mm digits with seven segment LCD

Product Differentiators

Standard NCI interfaces to most common shipping software, including UPS™ Worldship Online and FedEx® (not legal for trade)
Low profile stainless steel platform with mild steel understructure and stainless steel/ABS indicator
Operates on four (4) AAA batteries or AC adapter (both included)
No installation costs or parts that require maintenance. Just place the scale on a hard surface and level by adjusting the foot pads. Connect the power and you're ready to go

Product Resources

These resources help you get the most out of your Brecknell product. Can't find what you're looking for? Contact Us

Brochure

User Manual
