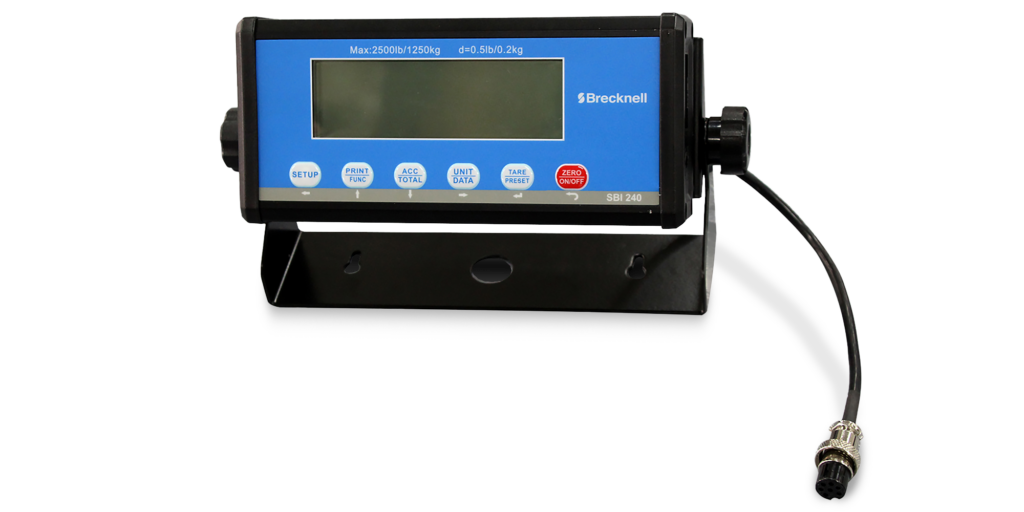

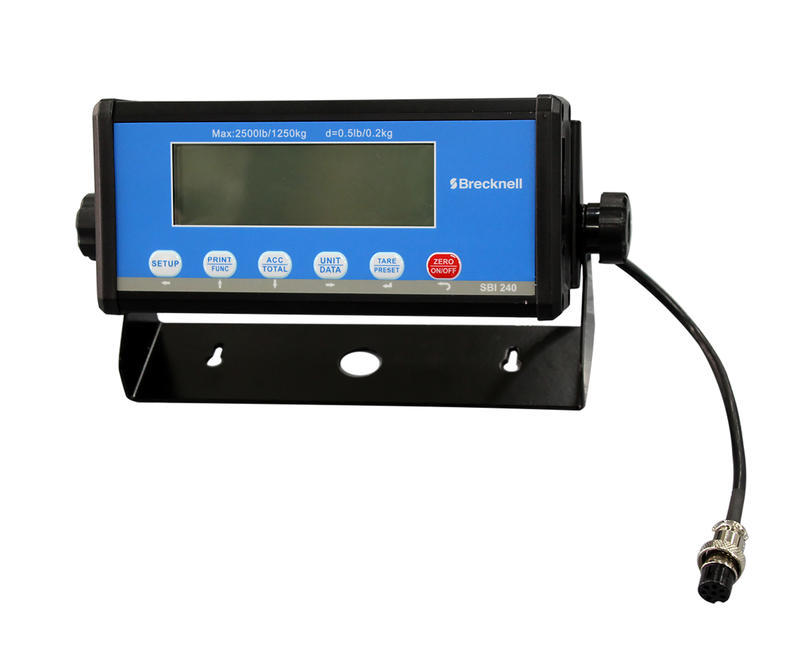

SBI 240 LCD Digital Indicator

The legal-for-trade SBI 240 Indicator is a very low cost, simple to operate weight indicator…

See All Products


The legal-for-trade SBI 240 Indicator is a very low cost, simple to operate weight indicator designed for use in a wide range of applications (weighing, counting, check weighing, percentage weighing, accumulation). This compact indicator is housed in a robust die cast aluminum housing and is supplied complete with a mounting bracket, that is ideal for wall or bench mounting.

The SBI 240 Indicator can easily be connected to any bench or floor scale with a maximum of up to four 350 ohm load cells.

The easy-to-read 6½ digits 1″ / 25 mm high, seven segment LCD with white backlight ensures accurate readings.

AC or battery powered indicator with up to 50 hours of battery life. Ideal for areas where continuous power may be hard to find. The SBI 240 indicator also has a number of auto off power saving features to help extend the battery life even further.

Comes stranded with one USB (VCP) and one RS-232 bi-directional comm’s ports. Ideal for data capture with a printer or PC.

Typical Applications: Industrial, Livestock, Shipping, Warehouse



Indicator Dimensions
9.5" x 4.9" x 2.5"
241 mm x 125 mm x 64 mm
Product Code
SBI-240 (NTEP approved) – 816965006960
6½ digits 1" / 25 mm high, large seven segment LCD with white backlight
CE, NTEP COC #15-084 (indicator), Measurement Canada AM-5998, RoHS 3, UKCA, ETL power adapter, WEEE

Product Differentiators

  • Power: Battery and AC mains powered
  • Construction: Die cast aluminum indicator housing with adjustable steel desk/wall bracket
  • Operator Keys: Weighing, counting, percentage weighing, check weighing and accumulation
