SBI 110

The legal-for-trade SBI 110 Indicator is a very low cost, simple to operate weight indicator designed for use…

Request a Quote

Overview

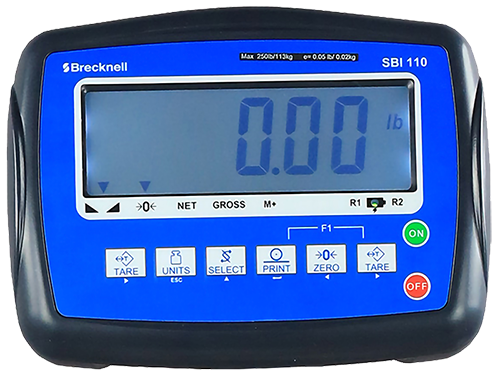

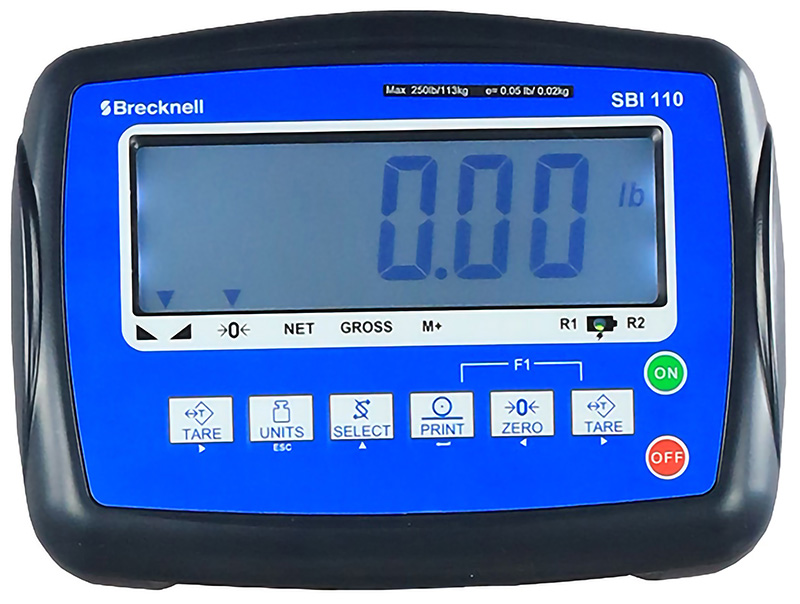

The legal-for-trade SBI 110 Indicator is a very low cost, simple to operate weight indicator designed for use in a wide range of applications (weighing, counting, and check weighing). This compact indicator is housed in a robust ABS plastic housing and is supplied complete with a mounting bracket, that is ideal for pole or bench mounting.

The SBI 240 Indicator can easily be connected to any bench or floor scale with a maximum of up to four 350 ohm load cells.

The easy-to-read seven digits 40 mm (1.6”) high, seven segment LCD with white backlight ensures accurate readings.

AC or battery powered indicator with up to 107 hours of battery life. Ideal for areas where continuous power may be hard to find. The SBI 110 indicator also has a number of auto off power saving features to help extend the battery life even further.

Specifications

Indicator Dimensions
9.6" x 6.9" x 3.3"
245 mm x 175 mm x 110 mm
Product Code
SBI 110 – 816965007363
Display
Seven digits 1.6" / 40 mm high, large
seven segment LCD with white backlight
Compliance
NTEP COC #18-125, FCC, Prop 65,
CEC, UL approved power adapter

Product Differentiators

  • Functions: Weighing, counting, and check weighing
  • Power: 12V 1a, 110-320V switch mode external power supply
  • Battery Life (one load cell): 107 hours with backlight always on
  • Units of Measure: lb, kg, g
