DS1000-LCD

The DS1000-LCD Drum Weigher Scale is ideal for any busy shipping area where goods are constantly…

Request a Quote

Overview

The DS1000-LCD Drum Weigher Scale is ideal for any busy shipping area where goods are constantly being moved around by pallet jacks or for monitoring drum weights.

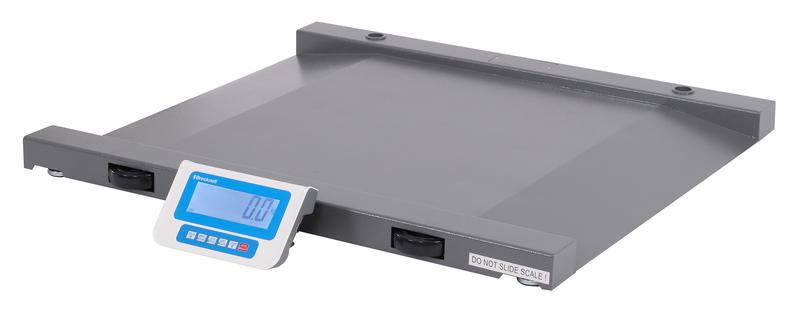

This portable, low profile floor scale features a powder coated rugged steel deck with a gradual 9% entry and exit ramp making it very easy to roll drums on and off the platform.

Simple to-operate, the indicator offers all the weighing functions needed for a wide range of applications as well as the display-hold function that retains results on the screen.

AC and battery powered means this scale can easily be installed in remote locations where power sockets are not available.

Typical Applications: Shipping/Receiving Areas, Industrial, Warehouse

Specifications

Display
Six large, easy-to read 1.5″ / 38 mm high digits, large seven segment LCD with white backlight
Product Code
DS1000-LCD (500kg / 1000lb) – 810036380270
Indicator Dimensions
9.5″ x 4.9″ x 2.5″ / 241 mm x 125 mm x 64 mm
Capacity
1000 lb x 0.5 lb / 500 kg x 0.2 kg

Product Differentiators

  • Accuracy: Within 0.1%
  • Power: AC adapter (included) or six AA batteries (not included)

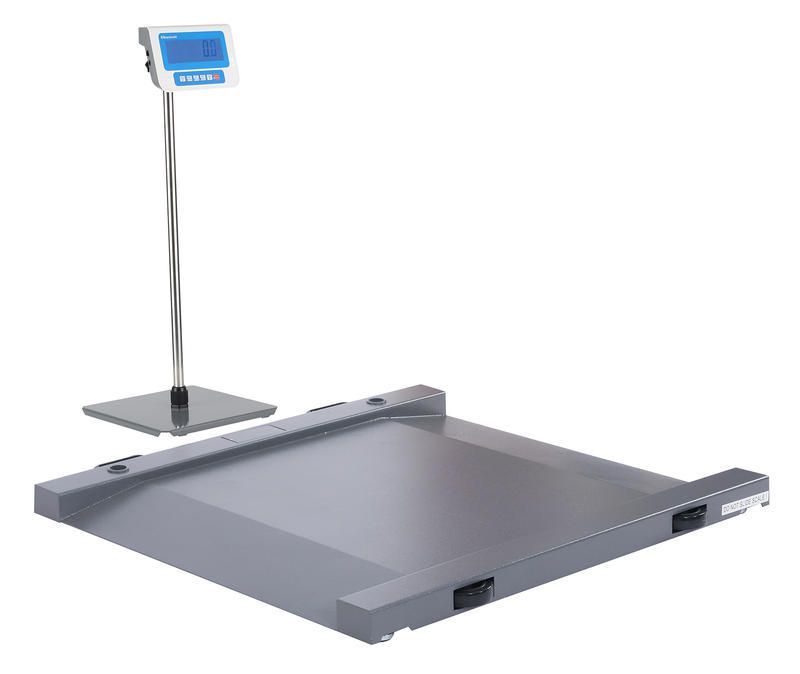

  • Construction: Powder coated rugged smooth steel deck structure and built-in ramps, fitted with two handles and wheels for relocating the scale. Robust ABS plastic indicator with bench or pole brackets for mounting
  • Operator Keys: On/Off/Zero, Tare, Unit, Print, Hold, Accumulate/Total

Product Resources

These resources help you get the most out of your Brecknell product. Can't find what you're looking for? Contact Us
