DCSB Series (Deck only)

The robust DCSB Industrial Floor Scale is used for a wide range of general weighing applications…

See All Products

Overview

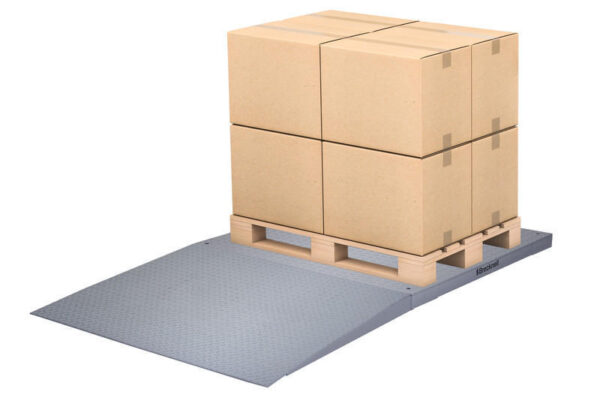

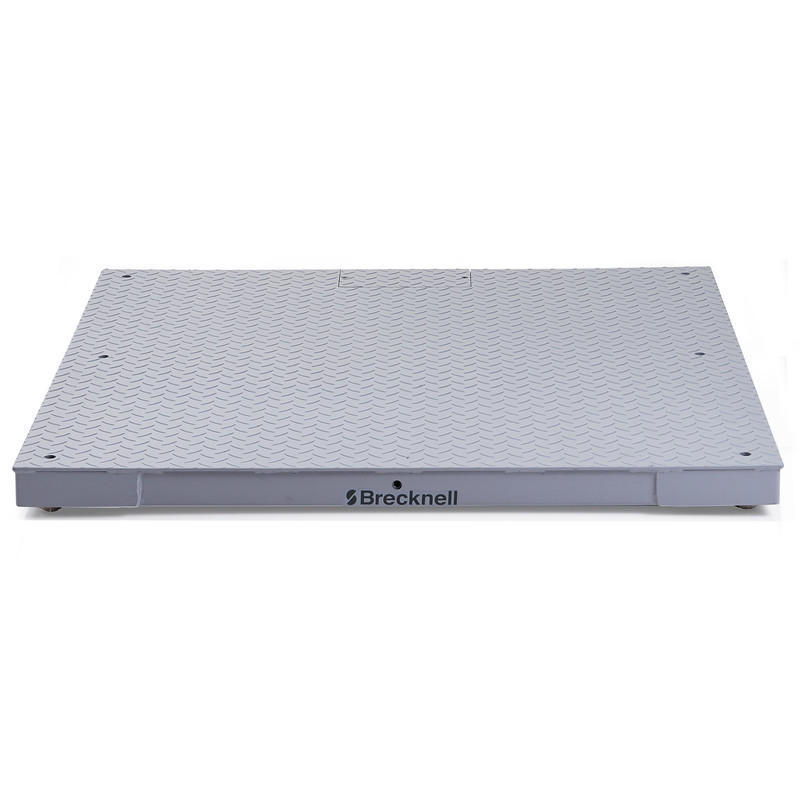

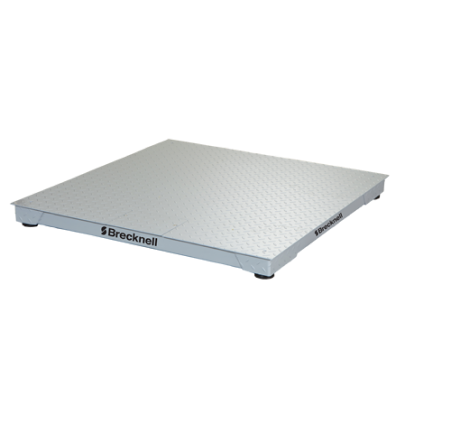

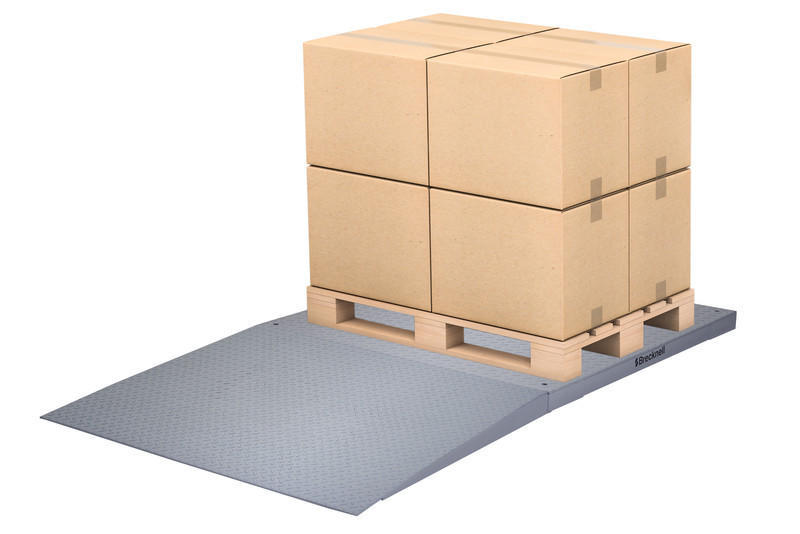

This robust DCSB Floor Scale (NTEP approved) is the ideal weighing solution for a wide variety of industries where palletized goods are constantly being weighed or moved around by pallet jacks or forklifts.

The platform deck, available in a wide range of capacities and dimensions, has 1/4″ / 6 mm thick hard-wearing checker plate with powder coat surface finish and waterproof IP67 load cells.

Typical Applications: Livestock, Shipping/Receiving Areas, Industrial, Warehouse

Warranty: 3-year limited

Approvals:

Specifications

Scale Dimensions
3.1" / 79 mm high; 1.75" / 44 mm adjustable leveling feet
Product Code
DCSB3636 (1250kg / 2500lb) – 810036380010
DCSB4848 (2500kg / 5000lb) – 56977-0019
DCSB4848 (5000kg / 10000lb) – 56977-0209
DCSB5959 (2500kg / 5000lb) – 810036380027
DCSB5959 (5000kg / 10000lb) – 810036380034
Capacity
2500 x 0.5 lb / 1250 x 0.2 kg
5000 x 1 lb / 2500 x 0.5 kg
10,000 x 2 lb / 5000 x 1 kg

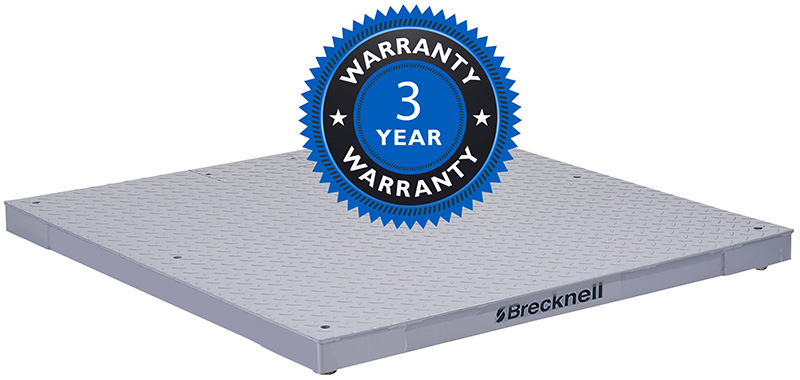

Warranty
Three year standard warranty

Product Differentiators

  • Accuracy: NTEP at 5000d, Class III, 3000d OIML
  • Load Cells: Four NTEP/ OIML C3 approved Alloy Steel IP68 load cells

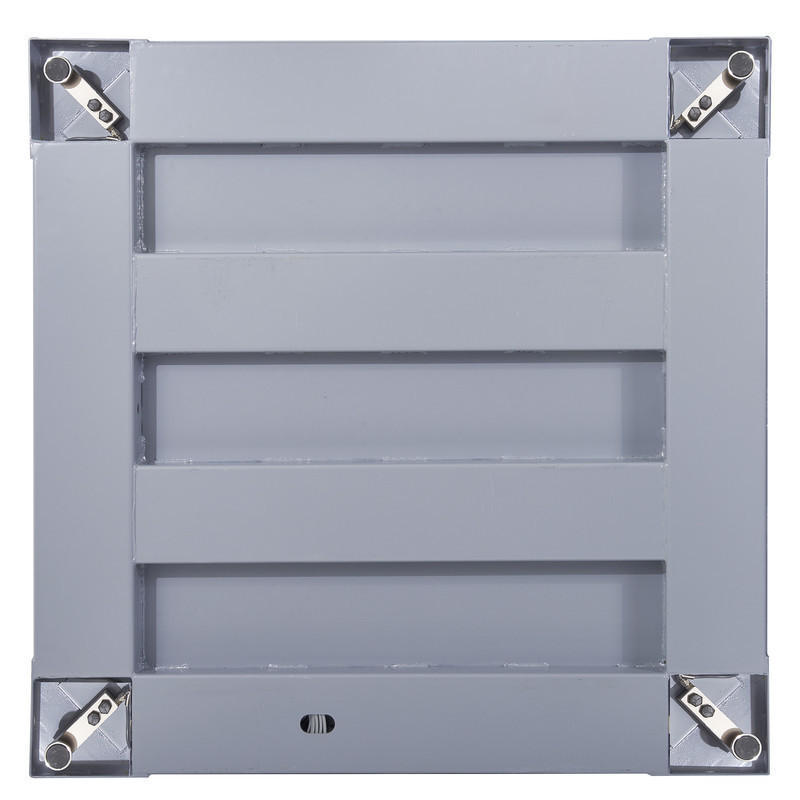

  • Construction: Up to 0.25" / 6 mm thick top plate with heavy duty welded channel support

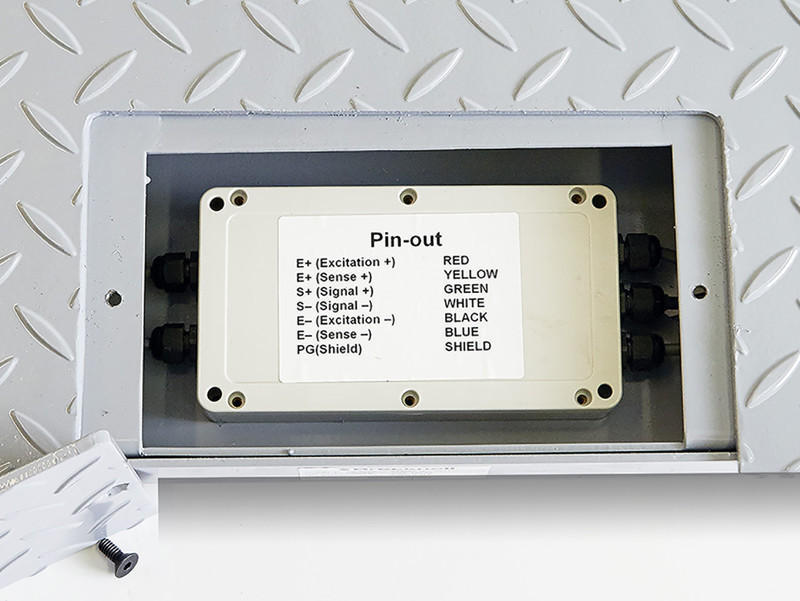

  • Junction Box: Top access

Applicable Industries

Veterinary and Agriculture

Product Resources

These resources help you get the most out of your Brecknell product. Can't find what you're looking for? Contact Us

Brochure
