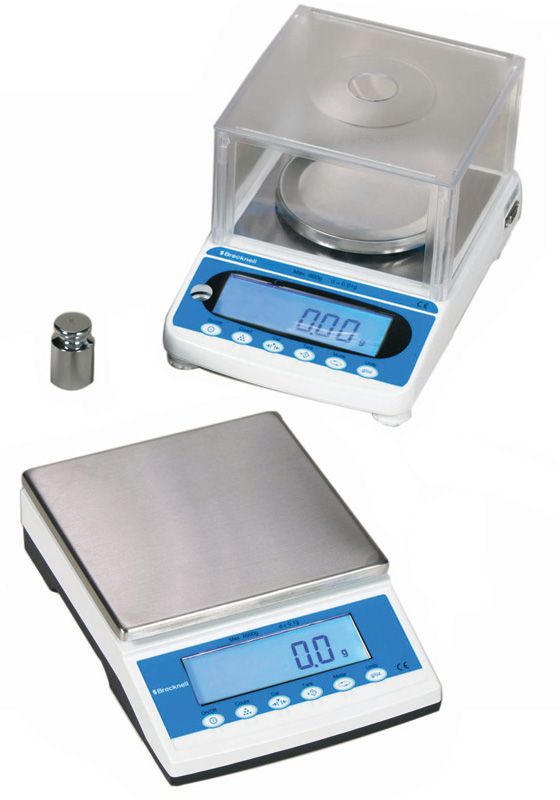

MBS Series

Overview

The MBS Series offers exceptional value and accuracy, making it ideal for process control, nutrition analysis, and science classrooms.
With its smart dual-range capacity feature, the MBS eliminates the need for multiple scales, reducing equipment clutter and boosting efficiency across your workspace.

Simple to use and built to last, the MBS features a robust ABS enclosure, a stainless-steel weighing platter, and a high-contrast backlit LCD display.
It comes standard with an RS-232 port for PC data collection and can be powered by either a wall adapter or AA batteries, delivering up to 15 hours of battery life. A built-in calibration mode ensures added accuracy when you need it most.

ONE SCALE – TWO CAPACITIES – SMART PRECISION
Dual-Range Technology™ automatically adjusts resolution based on the load measured, ensuring precise results for both small and large samples.

Typical Applications: Precision Weighing, Laboratories, Schools

Specifications

Scale Dimensions

300 g and 600 g - 4.65" diameter x 0.4" H/1200 g to 6000 g - 6.9" L x 6.9" W x 0.3" H

Product Code

MBS300 (300 g) – 816965004881
MBS600 (600 g) – 816965004898
MBS1200 (1200 g) – 816965004904
MBS3000 (3000 g) – 816965004911
MBS6000 (6000 g) – 816965004928

Platform Dimensions

300 g and 600 g capacities:
4.65″ / 120 mm diameter x 0.4″ / 9.5 mm

Dual-Range Capacity

300 g x 0.005 g - 600 g x 0.01 g
600 g x 0.01 g - 1200 g x 0.02 g
3000 g x 0.05 g - 6000 g x 0.1 g
Available units: g, lb, oz, ozt, dwt, ct, %, pc

Display

Large, clear 6 1/2 digits, 0.75" (19 mm) high 7-segment backlit LCD display

Product Differentiators

Accurate to within ±3 division at full load
Robust plastic housing, stainless steel top plate
Battery with auto off feature

Product Resources

These resources help you get the most out of your Brecknell product. Can't find what you're looking for? Contact Us

User Manual
