3900LP

Overview

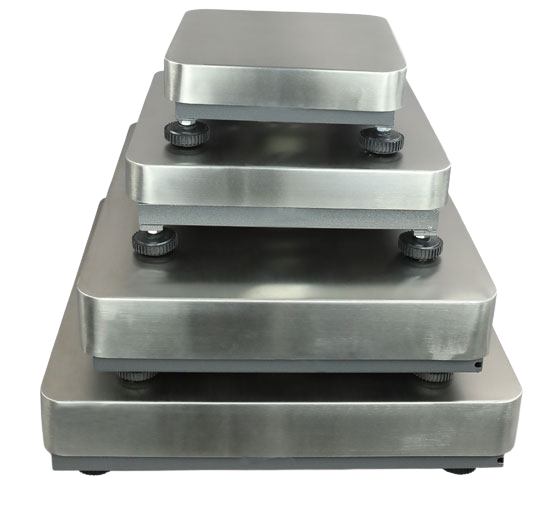

The 3900LP Base is NTEP approved at 5,000 divisions with an IP65 (NEMA 4) load cell and food grade 304 stainless steel top pan, which protects the base against corrosion and is easily sanitized.

This base offers a range of weighing capacities from 50 lb to 600 lb with five platform sizes. Featuring a carbon steel tubular frame and four corner stops, the 3900LP Base provides 150% overload protection for the load cell. The powder coat finish and large, lockable, adjustable, anti-slip feet provide a durable scale that you can easily install, even in areas where the floor isn’t level.

The 3900LP Base is the perfect solution for general weighing, warehouse and shipping/receiving applications.

Typical Applications: Dispatch, Light Industrial, Warehouse

Specifications

Platform Dimensions

100 lb / 45 kg 15.7 x 15.7 x 5.3
250 lb / 113 kg 15.7 x 19.7 x 5.7
600 lb / 272 kg 19.7 x 23.6 x 5.7

Display

Large 2" x 6.5" / 50 mm x 165 mm easy-to-read backlit display with 1.6" / 40 mm high digits

Compliance

NTEP 5000 divisions CC #18-124

Product Differentiators

NTEP approved, 5000 division bench base which can beused for a wide range of general purpose weighing applications
Available in a wide range of dimensions and capacities
Carbon steel fabricated frame with food grade 304 stainless steel top pan and a NEMA 4 aluminum load cell
Available Capacity: 100 lb x 0.02 lb / 45 kg x 0.01 kg 250 lb x 0.05 lb / 113 kg x 0.02 kg 600 lb x 0.2 lb / 272 kg x 0.1 kg

Product Resources

These resources help you get the most out of your Brecknell product. Can't find what you're looking for? Contact Us

Brochure
